Dione Sound Stripes

With this novel approach to microspeaker arrays, we transfer the concept of LED-strips into acoustics. The flexible sound-stripes can be used as an audio add-on for existing non-audio products. It can also act as an array of tweeters in a typical multi-way system.

Dione sound stripes are available in two versions: Dione Maxi, which consists of MEMS speakers with an external amplifier, and Dione Mini, which consists of MEMS speakers with an integrated amplifier in the array.

FEATURES

Ideal for Smart speakers

The flexible sound stripes are ideal for applications where audio is added on top of an existing design or as an array of tweeters in a typical 2-way system, such as smart speakers or soundbars.

Maximum Design Flexibility

Dione MEMS speaker array enables you to integrate speakers in any surface regardless of their shape, creating a flawless design.

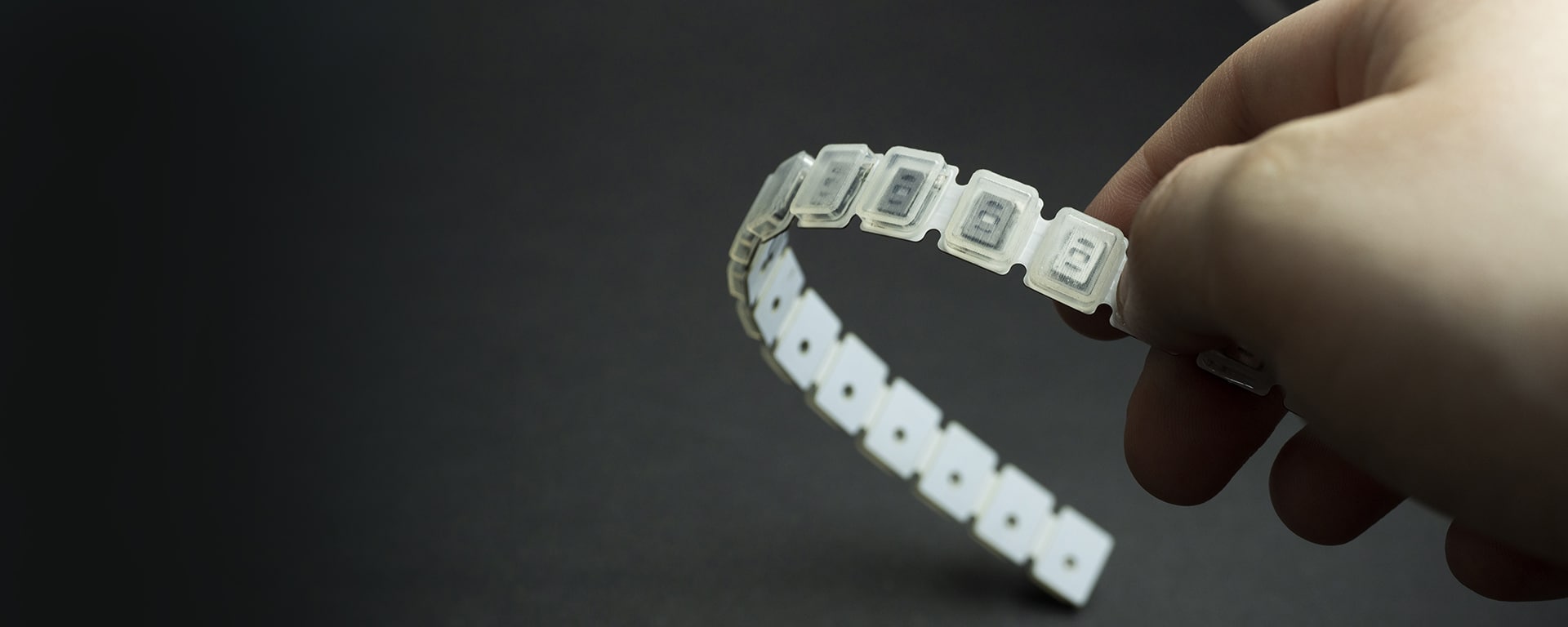

Bendable speaker array

The flexible PCB of the Dione sound stripes allows mounting loudspeakers in devices with high component density and unconventional aesthetics without creating acoustics blind spots.

Premium Hi-Res Audio

With their wide bandwidth and high precision, MEMS speakers provide crisp and vivid soundscapes. In an array, they enable the creation of directivity patterns.

Optimal reliability

The Dione sound stripe is inherently protected from mechanical damage. USound MEMS speakers comply with international reliability standards to ensure robustness and stable performance over the product lifetime.

DIONE MAXI UY-R3020

Dione Maxi UY-R3020 Datasheet

Download

Dione Maxi UY-R3020 consists of an array of MEMS speakers and the external amplifier board Amalthea 2.0 UA-R3020 to drive them. The speaker array, which is also referred to as the sound stripe, includes 20 USound Adap MEMS speakers. Due to its flexible structure and protective construction, the sound stripe is ideal for applications where audio is added on top of an existing design.

Technical Data

Acoustic Baffle @ 30 cm

SPL @ 4 kHz / 620 mVrms: 83 dB THD @ 4 kHz / 620 mVrms (83 dB): 10%

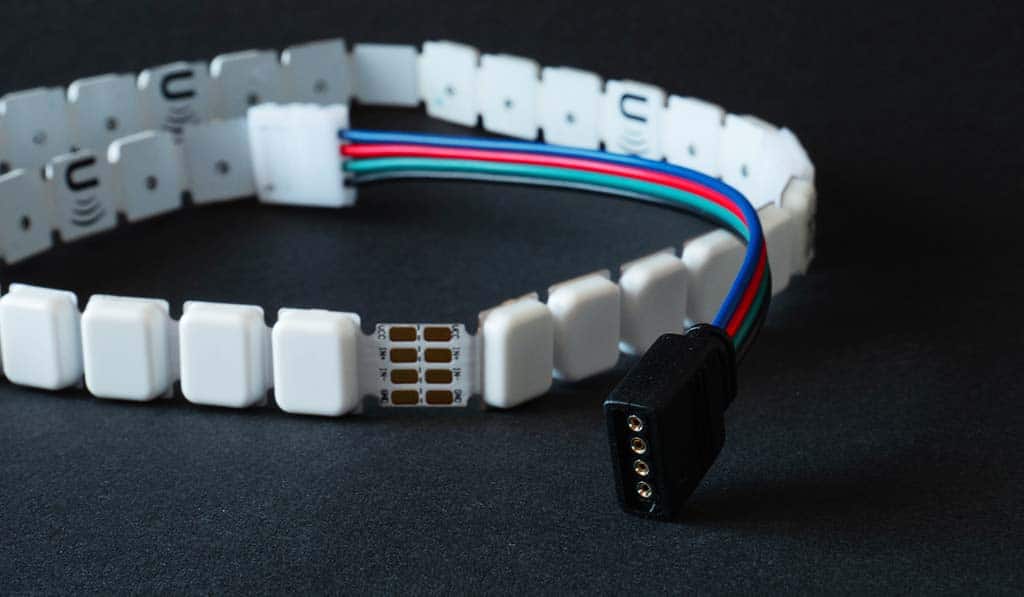

Dione Mini UY-R3010

Dione Mini UY-R3010 consists of an array of MEMS speakers with integrated amplifiers to drive them. Dione Mini UY-R3010 has an array of 3 connected individual segments, which can be separated or extended to accommodate the user‘s need. Each segment consists of 5 USound Adap MEMS speakers driven by an integrated amplifier. Due to its flexible structure and protective construction, the
Dione Mini UY-R3010 is ideal for applications where audio is added on top of an existing industrial design.

Technical Data

Acoustic baffle @ 30 cm
SPL @ 4 kHz / 620 mVrms: 80 dB
THD @ 4 kHz / 62 mVrms (59 dB): 1%

See Dione in action

Transfering the concept of led into acoustics

USound’s Dione sound stripe is a novel approach to loudspeaker arrays that allows unprecedented design flexibility.

Demonstrator: Proteus 2.0

Proteus 2.0 is a speaker system consisting of a base box with one 6.35 mm subwoofer and three sound tubes, each containing 20 MEMS speakers in an array, producing a homogenous clear surround sound.

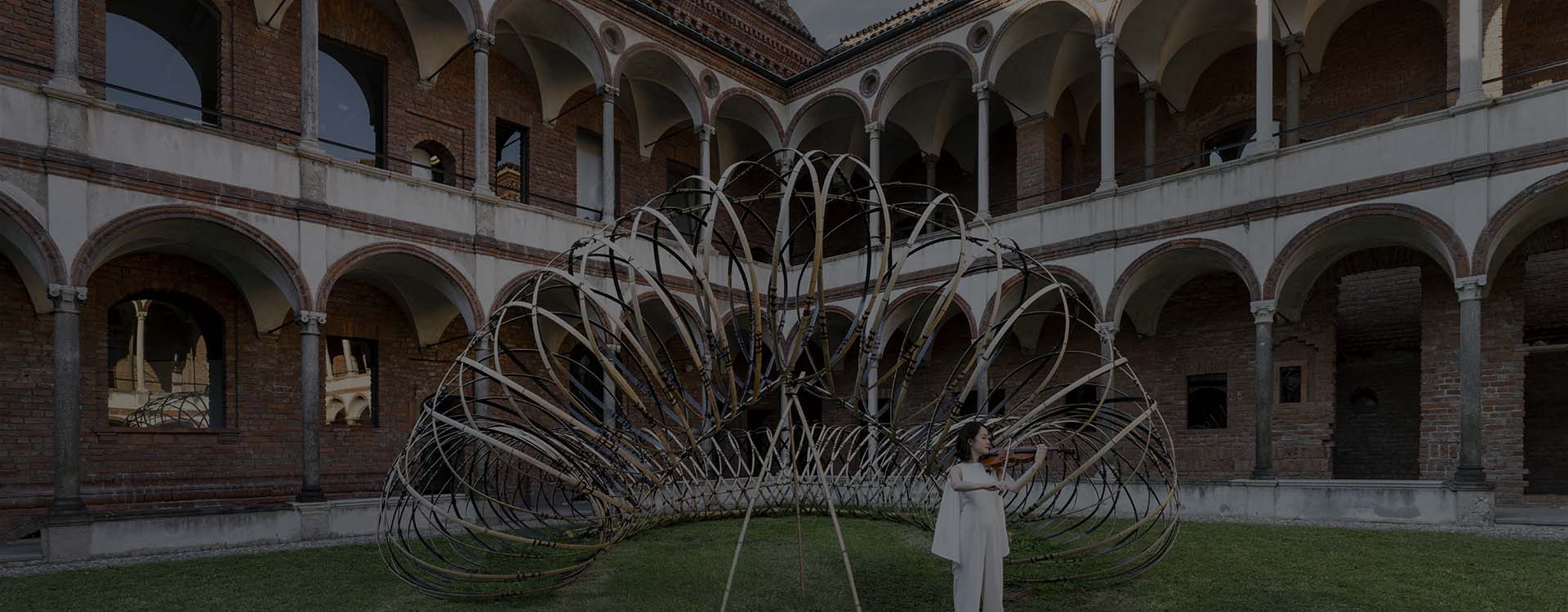

USound for OPPO x Kengo Kuma

USound contributed to the multisensory landmark Bamboo (竹) Ring :|| Weaving a Symphony of Lightness and Form exhibited at the Milan Design Week 2021. This version of the installation features a layer of technology to engage all the senses with music through a series of orchestral scores composed by Japanese violinist Midori Komachi with Musicity. This was made possible by combining haptic motors, USound MEMS speakers, and exciters producing an immersive experience.
